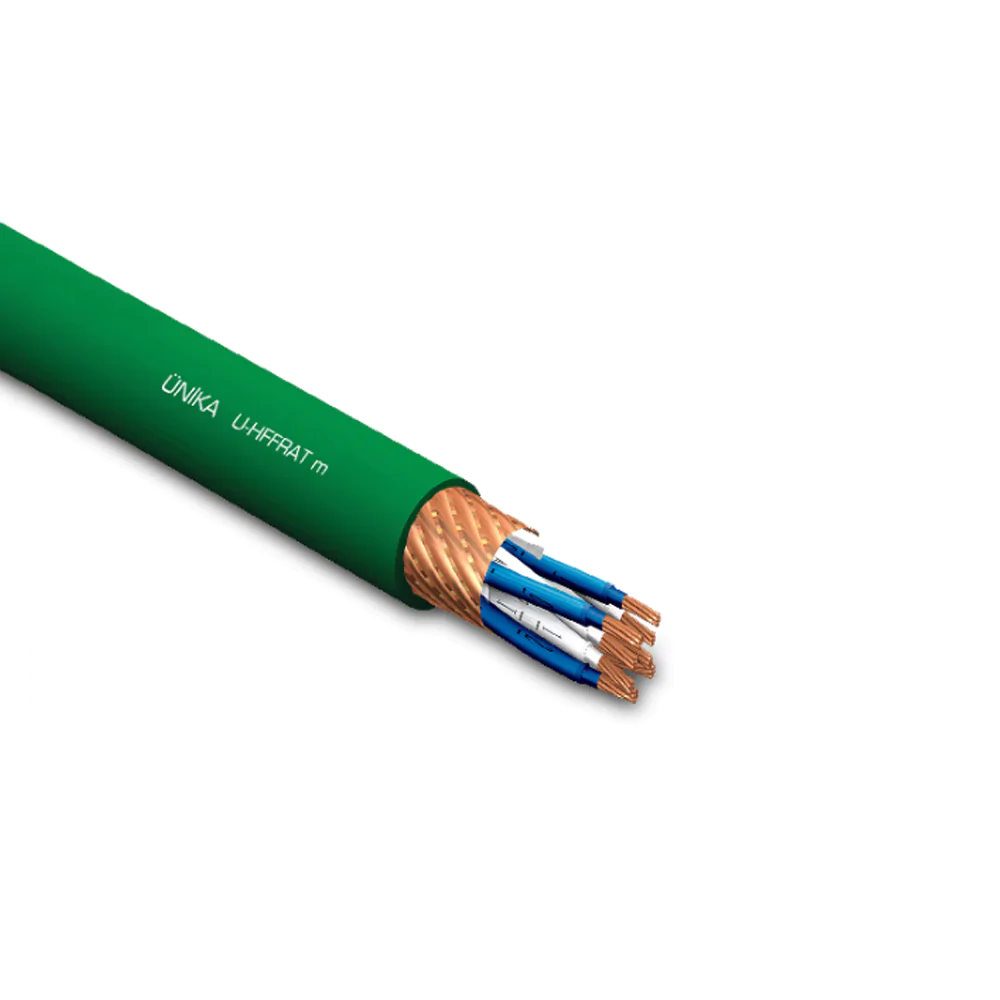

U-HFFRAT m 250V Fire Resistant Halogen-Free Shipboard Cable
Fire Resistant, Armoured
250 V Fire Resistant Screened Telecommunication & Control Cables
Construction
Technical Features
Construction
Conductor : Electrolytic, stranded, annealed, bare or tinned copper, Class 2 or Class 5
Mica Glass tape
Insulation: XLPE
Inner Sheath : Polyester tape or filler
Screen: Copper wire braiding with drain wire
Outer Sheath : Green colored, halogen-free, low smoke, flame-retardant, polyolefine based thermoplastic compound
Technical Features
Rated Voltage : 250 kV
Test Voltage : 1,5 kV
Temperature Range : -40°C / +90°C
Bending Radius : 6 x Outer Diameter
Halogen free properties : IEC 60754-1&2
Low smoke emission : IEC 61034-1&2
Flame Retardancy : IEC 60332-3 CAT.A
Application : Used in ships and sea vehicles for telecommunication and signal applications. Halogen-free, flame retardant and low smoke density type cables, these cables have function endurance according to IEC 60331. Screened against electromagnetic interferences.
Standards of Design & Tests : IEC 60092-376 & IEC 60092-350 / IEC 60331-21
Note: Please follow manufacturer datasheets and guidelines for cable usage and installation.
| Nominal Cross-section(mm²) | 1×1,5, 1×2,5, 1×4, 1×6, 1×10, 1×16, 1×25, 1×35, 1×50, 1×70, 1×95, 1×120, 1×150, 1×185, 1×240 |
|---|---|
| Net Weight (approx)(kg/km) | 19, 29, 42, 60, 98, 150, 232, 330, 465, 640, 845, 1076, 1316, 1627, 2146 |
| Overall Diameter of Cable (approx)(mm) | 2,9, 3,3, 3,8, 4,4, 5,3, 6,3, 8, 9,2, 10,9, 12,6, 14,2, 15,9, 17,7, 19,8, 22,5 |
| Conductor DC Resistance at 20°C(ohm/km) | 13,3, 7,98, 4,95, 3,3, 1,91, 1,21, 0,78, 0,554, 0,386, 0,272, 0,206, 0,161, 0,129, 0,106, 0,0801 |
