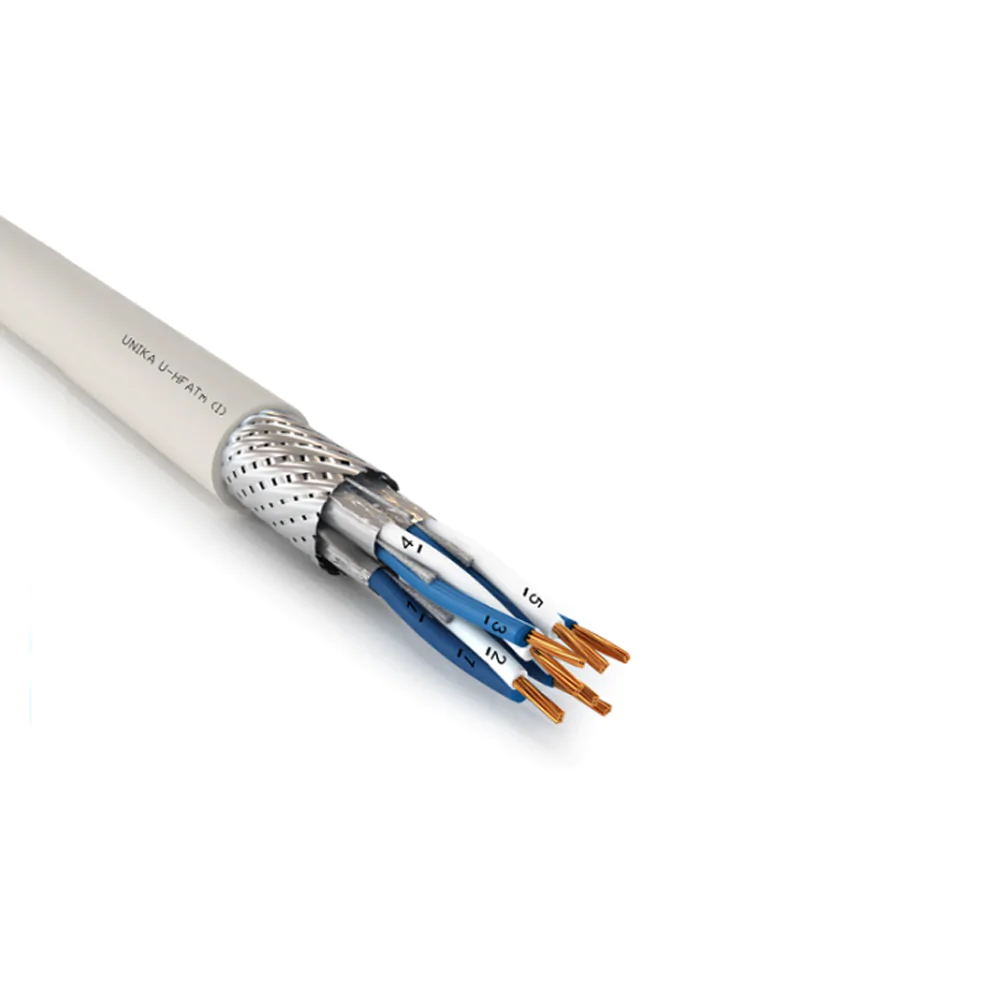

Conductor : Electrolytic, stranded, annealed, bare or tinned copper, Class 2 or Class 5
Insulation : XLPE
Individual Screen : Aluminium Polyester tape with tinned copper drain wire
Inner Sheath : Halogen-free thermoplastic filler or polyester tape
Screen : Copper wire braiding and drain wire
Outer Sheath : Grey or black colored, halogen-free, low smoke, flame-retardant, polyolefine based thermoplastic compound
Rated Voltage : 250 kV
Test Voltage : 1,5 kV
Temperature Range : -40°C / +90°C
Bending Radius : 6 x Outer Diameter
Halogen free properties : IEC 60754-1&2
Low smoke emission : IEC 61034-1&2
Flame Retardancy : IEC 60332-3 CAT.A
Application : Used in ships and sea vehicles for telecommunication and signal applications. Halogen-free, flame retardant and low smoke density type cables.
Standards of Design & Tests : IEC 60092-376 & IEC 60092-350
Note: Please follow manufacturer datasheets and guidelines for cable usage and installation.
