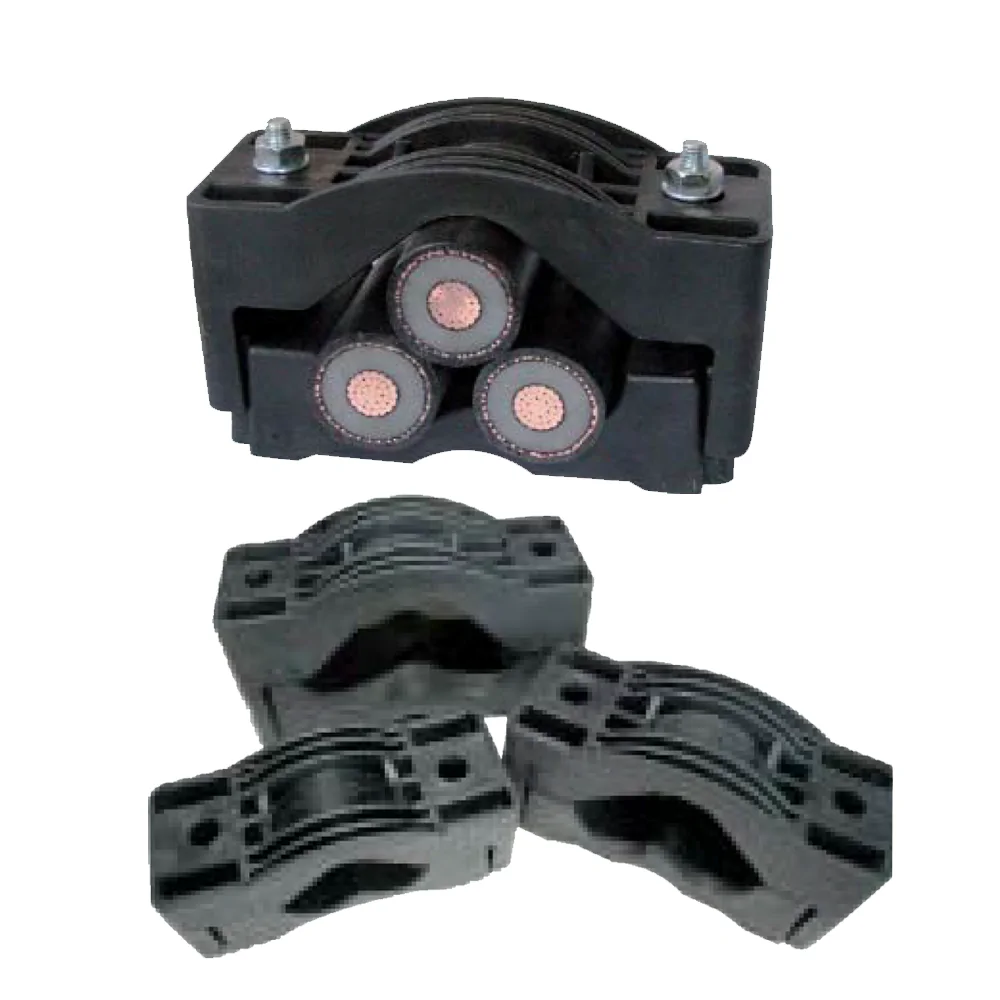

Trefoil_Cleats_Polyamide

Suitable for cables in trefoil groups – with cable diameters from 27-118mm

For mounting low, medium and high voltage cables

Manufactured from high strength glass fi lled Polyamide 6.
No sharp edges i.e. No chance of damaging the cable or installer.
Highly range taking – able to accommodate loosely toleranced cables.
Only 5 sizes in the range covering 27 to 118mm.
Non magnetic
Halogen free and fl ame retardant – ideal for tunnels and buildings V-0 (UL94)
Weather Resistant – UV, ozone & frost.
Resistant to oils, acids, salts & other aggressive materials
Resistant to ionizing radiation – ideal for use in nuclear power plants.
Fully recyclable
Stackable
Tested by UL, Kema, Eaton & Centrilab.
Expected life of 40 years +

Approved to BS EN 61914 :2009 cat 6.4.4
Suitable for a maximum fault level generating 30kN of force.
Size 1 (27-38mm) = 28kA RMS 72kA peak with cleats at 900mm intervals.
Size 2 (38-51mm) = 33kA RMS 85kA peak with cleats at 900mm intervals.
Size 3 (51-69mm) = 38kA RMS 98kA peak with cleats at 900mm intervals.
Size 4 (69-90mm) = 44kA RMS 114kA peak with cleats at 900mm intervals.
Size 5 (90-118mm) = 51kA RMS 132kA peak with cleats at 900mm intervals.
All sizes have stud clearance holes of 15.5mm, allowing fixing sizes M10, M12 & M14 to be used.
Operating Temperature -40° C to +125°C (with short periods at +225°C)
