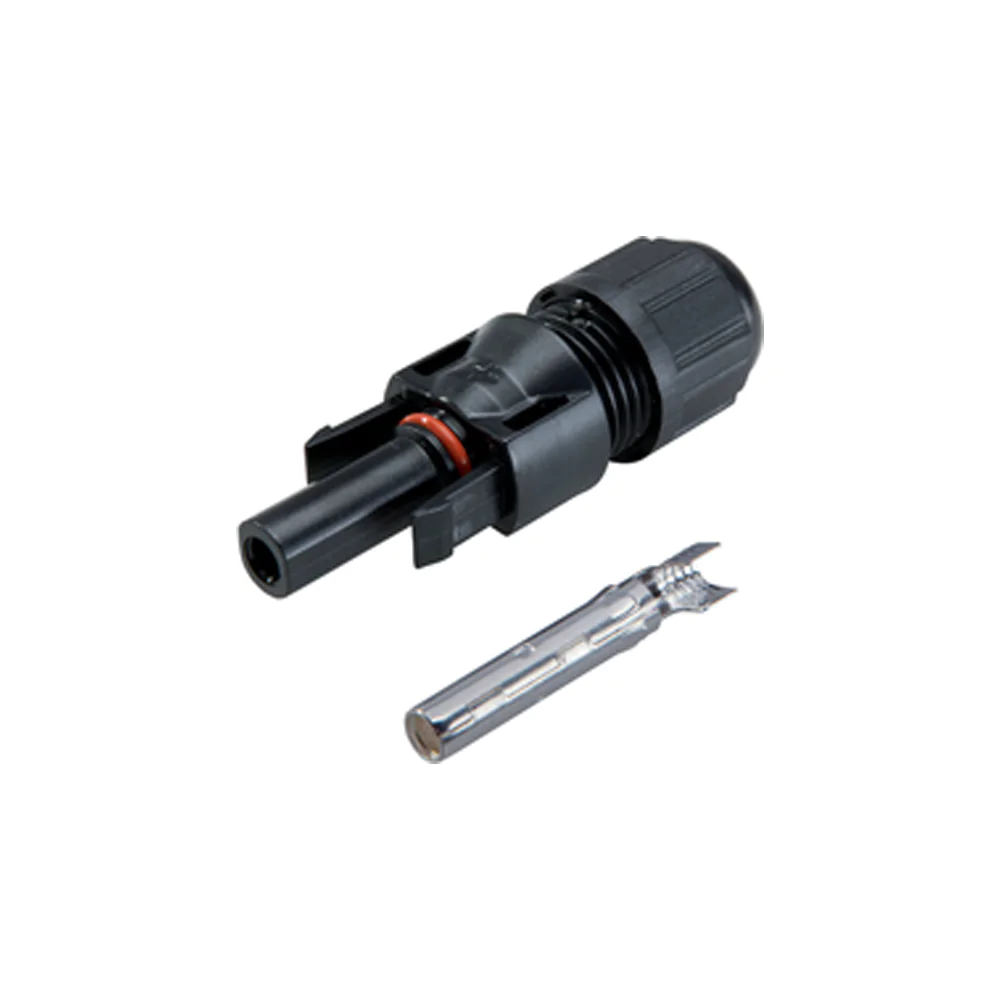

Solar Cable Accessories
Connector system for weatherproof cabling of photovoltaic systems
4 mm connector system with double hook. Splitter for parallel connection of photovoltaic modules
Benefits
Application range
Product features
Technical Data
Benefits
Splitter for pallalel connection of PV-modules and strings
Easy plug and play
Fixing option for a clear installation with a Ø 5mm mounting hole
Application range
Photovoltaic plants
Crystalline and thin-film constructions
Solartracker
Product features
Mateable with EPIC® SOLAR 4 THIN, EPIC® SOLAR 4PLUS, EPIC® SOLAR 4
Splitter MFF 1x connection male, 2x connection female
Splitter MFF 1x connection female, 2x connection male
Technical Data
Classification: ETIM 5.0 Class-ID: EC002635, ETIM 5.0 Class-Description: Circular connector (industrial connector)
Rated voltage (V): 1000 V AC/DC
Rated impulse voltage: 8 kV
Rated current (A): 30 A
Pollution degree: 3
Protection rating: IP65/IP67
Cycle of mechanical operation: 100
Protection class: II
Temperature range: -40 °C … +85 °C
Note: Please follow manufacturer datasheets and guidelines for cable usage and installation.
