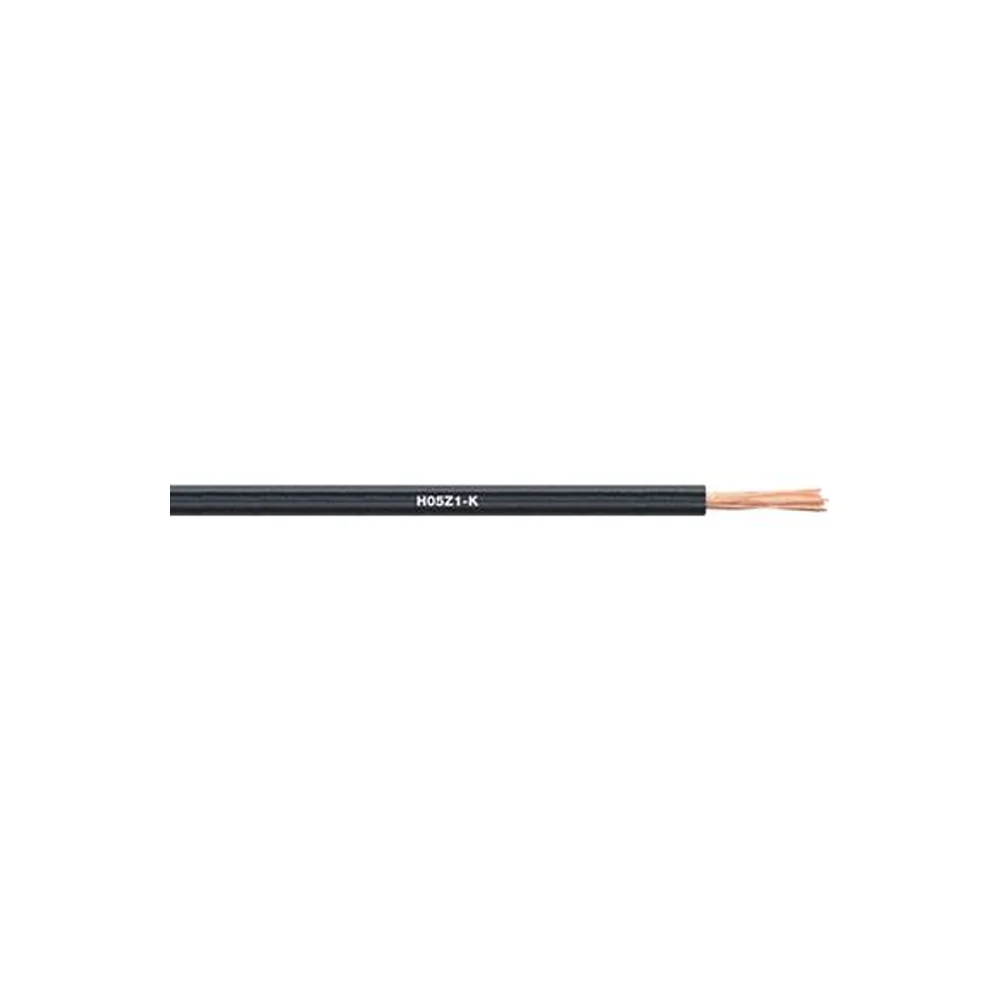

Panel Wire type HO5Z1-K, HO7Z1-K
Harmonised; halogen-free to protect human life, the environment and material assets
H05Z1-K, , Halogen-free single core, +70°C, harmonised, for wiring in control cabinets, nominal voltage 300/500V
H07Z1-K Type 2, , halogen-free single core, +70°C, harmonised, for wiring in control cabinets, nominal voltage 450/750V
Benefits
Application range
Product features
Norm references / Approvals
Product Make-up
Technical Data
Benefits
Protection of human life and the environment thanks to the avoidance of the formation of acid in case of fire
Time-saving assembly
Application range
For wiring of lamps, devices, switchgear cabinets and distribution boxes
For installation in tubes, on, in and under plaster as well as in closed installation ducts
In building with a high density of people or valuable assets
For use in dry rooms
For expanded ambient temperatures see H05Z-K 90°C
Product features
The insulation material is halogen-free and free of other materials which could release toxic gases in the event of fire
Low amount of corrosive gases in the event of fire
Low smokes/low smoke density in the event of fire according to IEC 61034
Flame-retardant according IEC 60332-1-2
Norm references / Approvals
cable type certification acc. EN 50525-3-31
Product Make-up
Fine-wire strand made of bare copper wires
Core insulation: Halogen-free
Technical Data
Classification ETIM 5: ETIM 5.0 Class-ID: EC000993
ETIM 5.0 Class-Description: Single core cable
Conductor stranding: Fine wire according to VDE 0295 Class 5/ IEC 60228 Class 5
Minimum bending radius: According to EN 50565-1
4 x outer diameter (OD) for normal use; 2 x OD for cautions
bending
Nominal voltage: U0/U: 300/500 V
Test voltage: 2000 V AC
Current rating: VDE 0298-4
EN 50565-1/ VDE 0298-565-1
Temperature range:
During installation: +5°C bis +70°CFixed installation: -40°C bis +70°C
Note: Please follow manufacturer datasheets and guidelines for cable usage and installation.
| Conductor Cross Section | 0.75 mm², 1 mm² |
|---|---|
| Colour | Black, Blue, grey |
| Outer diameter | m/ring-m/spool | Copper index | Weight | 2.2 – 2.7mm | 100 m/ring | 7.2kg/km | 11kg/km, 2.4 – 2.8mm | 100m/ring | 9.6kg/km | 14kg/km |
