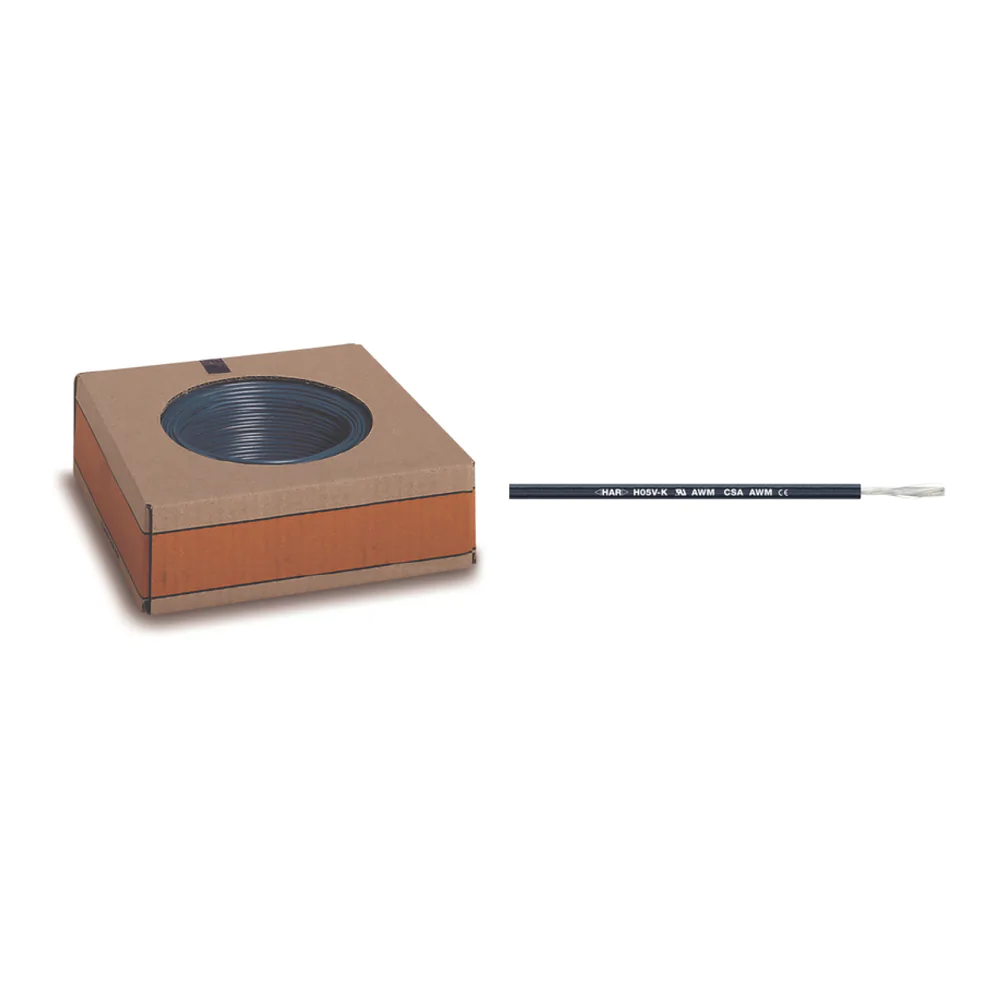

Panel Wire type HO5V-K, HO7V-K UL approved
UL-recognised (AWM) + CSA AWM I A/B + H05V-K, tinned-copper strands Lapp Kabel® MULTI-STANDARD SC 1, power and control cable, PVC single core, UL-recognized/UL AWM style 1007+1569 & CSA AWM I A/B +105 °C/300 V, HAR H05V-K
USA: UL-listed (MTW), Canada: CSA (TEW), Europe: H07V-K (depending on cross s.), tin-coated strands Lapp Kabel® MULTI-STANDARD SC 2.1, power and control cable, PVC single core for field wiring, UL MTW VW-1, UL AWM style 1015 600 V, CSA TEW FT1, HAR H07V-K
Benefits
Application range
Product features
Norm references / Approvals
Product Make-up
Technical Data
Benefits
For use in the most important global markets
Reduction in technical documentation
Easy storage
Increases the cost-effectiveness of the production process
Application range
Factory wiring
Internal wiring of devices
Control cabinet wiring
Product features
Flame-retardant according IEC 60332-1-2
Flame-retardant according to UL VW1/CSA FT1
Oil-resistant
Norm references / Approvals
Multi-standard cables have conductor strands with nominal sizes in mm² or AWG/kcmil. The master size is mentioned in the table below, while the equivalent size of the other system can be found in the Appendix T16 of this catalogue. For this related secondary size the cross-section of the conductor mostly works out to be greater than the specified nominal value. Cable type certifications: H05V-K acc. EN 50525-2-31, UL AWM styles 1007 & 1569 (by UL acc. UL standard UL 758, U.I. Lapp GmbH’s UL AWM file number: E63634), CSA AWM I A/B (by CSA acc. CSA standard CSA C22.2 No. 210-05, CSA class 5851-01
Product Make-up
Fine-wire strand made of tinned-copper wires
Special PVC-based core insulation
Technical Data
Classification ETIM 5: ETIM 5.0 Class-ID: EC000993, ETIM 5.0 Class-Description: Single core cable
Classification ETIM 6: ETIM 6.0 Class-ID: EC000993, ETIM 6.0 Class-Description: Single core cable
Conductor stranding: Fine wire according to VDE 0295 Class 5/ IEC 60228 Class 5
Minimum bending radius: 4 x outer diameter (OD) for normal use; 2 x OD for cautions bending
Nominal voltage: HAR / IEC: U0/U: 300/500 V;
UL (AWM): U: 300 V;
CSA (AWM I A/B): U: 300 V
Test voltage: 2000 V
Temperature range:
Fixed installation:
HAR/IEC: -40°C to +70°C;
UL (AWM): up to +105°C;
CSA (AWM I A/B): up to +105°C
Note: Please follow manufacturer datasheets and guidelines for cable usage and installation.
| Conductor Cross Section | 0.5 mm², 0.75 mm², 1 mm² |
|---|---|
| Colour | Black, Blue, brown, dark blue, Green/Yellow, grey, orange, Red, violet, white, Yellow |
| Outer diameter | m/ring-m/box| Copper index | Weight | 2.5mm | 3000m/box | 4.8kg/km | 9kg/km, 2.5mm | 100m/ring | 4.8kg/km | 9kg/km, 2.6mm | 100m/ring | 7.2kg/km | 12kg/km, 2.6mm | 2500m/box | 7.2kg/km | 12kg/km, 2.8mm | 100m/ring | 9.6kg/km | 15kg/km, 2.8mm | 2000m/box | 9.6kg/km | 15kg/km |
