Panel Wire Tri Rated

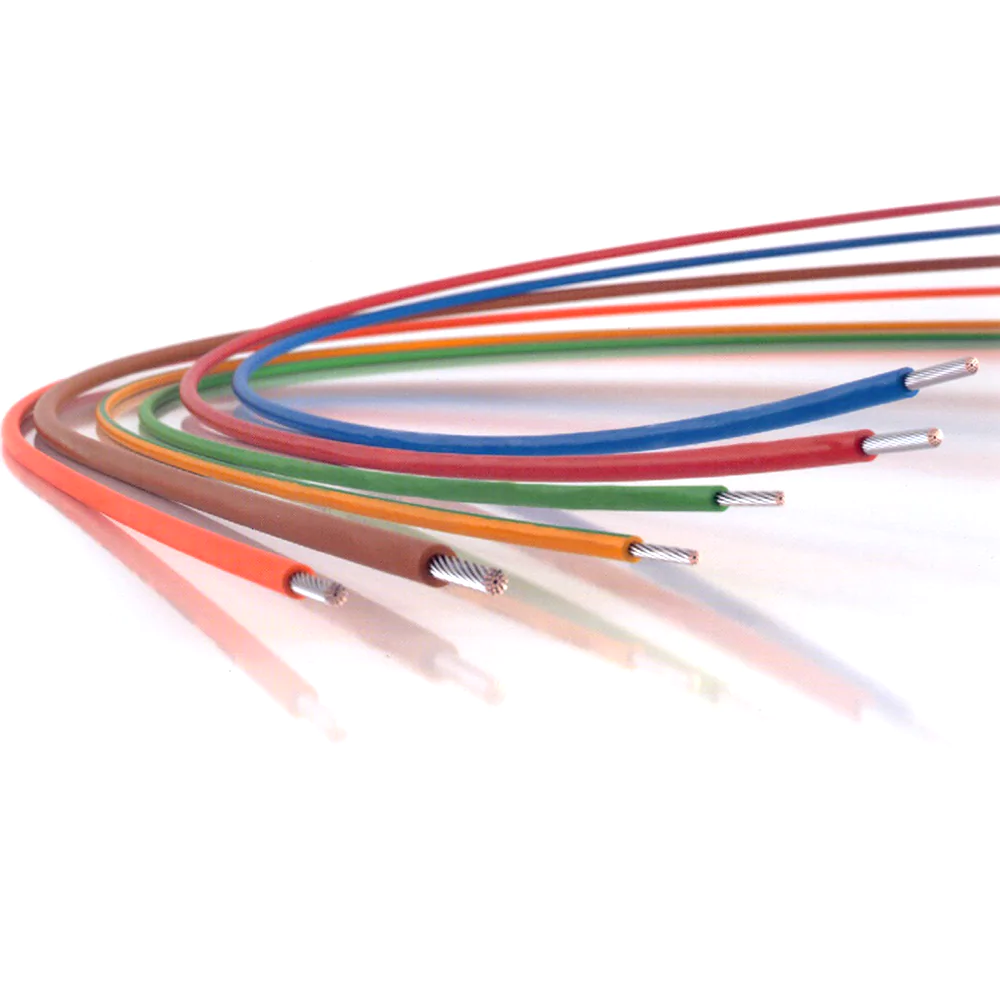

Tri-Rated cable (also known as BS6231 control panel wire or switchgear cable) is a fire retardant cable used in electrical cabinets, switch control, relay and instrumentation panels of power switchgear. It derives its name from meeting the specifications of three separate standard-setting bodies – the British Standards Institute (BSi), the Underwriters Laboratories’ (UL) Appliance Wiring Materials (AWM), and the Canadian Standards Association (CSA) – hence making it tri-rated.
This product’s triple rating makes it highly sought-after around the world as the triple certification of these cables enables their use in the North American markets as well as the European ones, which can result in a leaner and more flexible equipment manufacturing process. These cables are referred to as H05V2-K and H07V2-K under their European harmonisation (HAR) designation code.

SKU: N/A Category: Available Brands:

Note: Please follow manufacturer datasheets and guidelines for cable usage and installation.


0.5mm², 0.75mm², 1mm², 1.5mm², 2.5mm², 4mm², 6mm², 10mm², 16mm², 25mm², 35mm², 50mm², 70mm², 95mm², 120mm², 150mm², 185mm², 240mm²

No of starnds

16, 24, 30, 32, 50, 56, 80, 84, 126, 196, 276, 360, 396, 475, 608, 760, 925, 1220

Approx. Strand Dia

0.19mm, 0.24mm, 0.29mm, 0.39mm, 0.48mm

DC Resistant @120deg

0.0801ohm/km, 0.106ohm/km, 0.129ohm/km, 0.161ohm/km, 0.206ohm/km, 0.272ohm/km, 0.386ohm/km, 0.554ohm/km, 0.78ohm/km, 1.21ohm/km, 1.91ohm/km, 3.3ohm/km, 4.95ohm/km, 7.98ohm/km, 13.3ohm/km, 19.5ohm/km, 26ohm/km, 39ohm/km

Approx. Net Weight

11kg/km, 13.9kg/km, 16.7kg/km, 21.5kg/km, 31.5kg/km, 46.3kg/km, 69.9kg/km, 115.9kg/km, 170.6kg/km, 261.6kg/km, 353.6kg/km, 517.2kg/km, 751.4kg/km, 937.8kg/km, 1176.6kg/km, 1448.1kg/km, 1780.4kg/km, 2281.3kg/km

Nominal Insulation Thickness

0.8mm, 1mm, 1.2mm, 1.4mm, 1.6mm, 1.8mm, 2mm, 2.1mm

Approx. Over All diameter

2.6mm, 2.8mm, 3mm, 3.2mm, 3.7mm, 4.2mm, 5.2mm, 6.5mm, 7.5mm, 9.2mm, 10.3mm, 12.7mm, 14.4mm, 15.4mm, 18mm, 19.9mm, 22mm, 24.6mm
