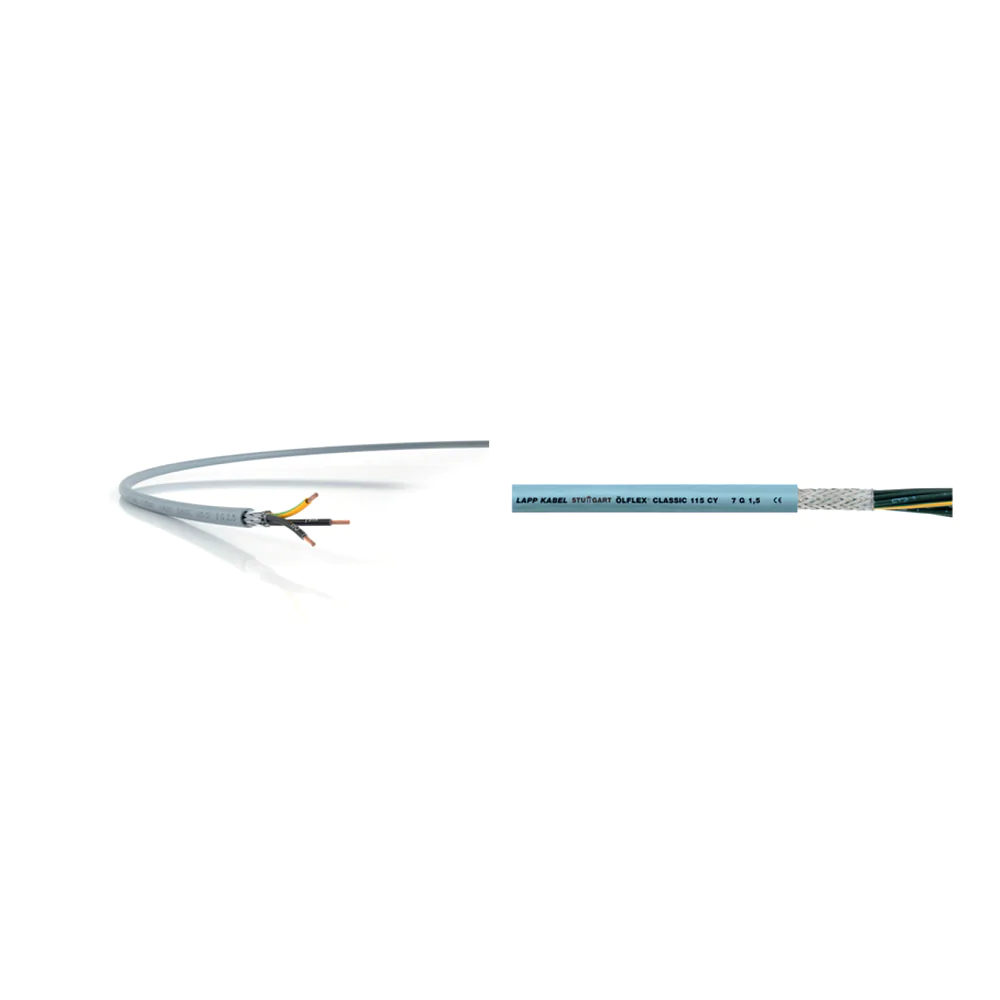

ÖLFLEX® CLASSIC 115 CY

Space-saving installation due to small cable diameters

Measurement and control technology
Plant engineering
Industrial machinery
Heating and air-conditioning systems
Office machines and systems for data processing
In EMC-sensitive environments (electromagnetic compatibility)
Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)

Flame-retardant according IEC 60332-1-2
Good chemical resistance
High degree of screening
low transfer impedance (max. 250 Ω/km at 30 MHz)

Based on EN 50525-2-51

Fine-wire strand made of bare copper wires
PVC insulation LAPP P8/1
Cores twisted in layers
Plastic foil wrapping
Tinned-copper braiding
PVC outer sheath, grey (similar RAL 7001)

Classification ETIM 5: ETIM 5.0 Class-ID: EC000104
ETIM 5.0 Class-Description: Control cable
Classification ETIM 6: ETIM 6.0 Class-ID: EC000104
ETIM 6.0 Class-Description: Control cable
Core identification code: Black with white numbers acc. to VDE 0293-334
Conductor stranding: Fine wire according to VDE 0295, class 5/IEC 60228 class 5
Torsion movement in WTG: TW-0 & TW-1, refer to Appendix T0
Minimum bending radius: Occasional flexing: 20 x outer diameter
Fixed installation: 6 x outer diameter
Nominal voltage: U0/U: 300/500 V
Test voltage: Core/core: 4000 V
Core/screen: 2000 V
Protective conductor: G = with GN-YE protective conductor
X = without protective conductor
Temperature range: Occasional flexing: -5°C to +70°C
Fixed installation: -40°C to +80°C
