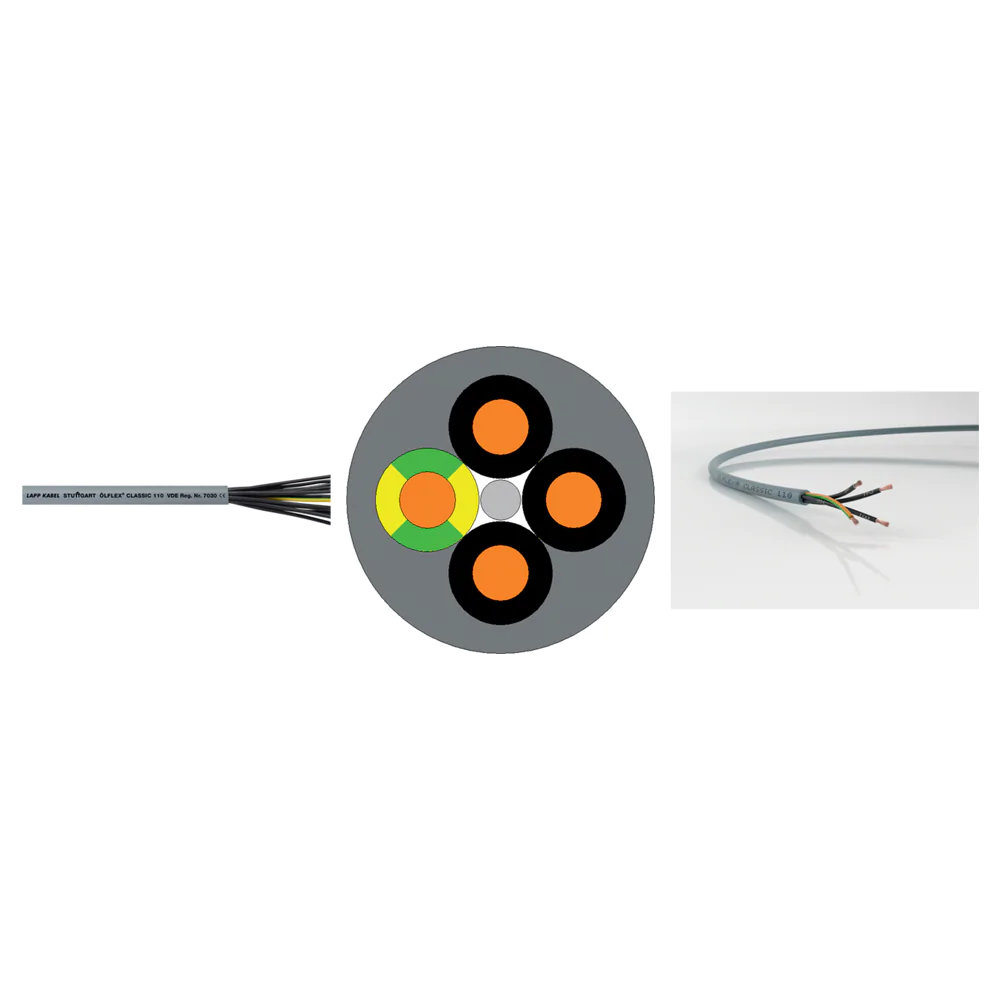

ÖLFLEX® CLASSIC 110

Wide choice of standardized lengths and individual cuts.
Very broad range, items with up to 100 conductors.

For fixed installation as well as occasional flexing at free, non-continuously recurring movement without tensile load.
Dry or damp rooms that are subject to medium mechanical loads.
Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG).
In power chains for a travelling distance up to 5 m and 0,2 … 1 million bending cycles, for following dimensions: 0,5 to 2.5mm² and 2 to 7 conductors.

Flame-retardant according IEC 60332-1-2.
Good chemical resistance
Oil-resistant according to DIN EN 50290-2-22 (TM54.

VDE reg. no. 7030 for the following sizes:
up to 2.5 mm²: 2 – 65 cores
from 4 mm²: 2 – 7 cores
from 25 mm²: 2 – 5 core

Fine-wire strand made of bare copper wires.
PVC insulation LAPP P8/1.
Cores twisted in layers.
PVC outer sheath, grey (similar RAL 7001).

Classification ETIM 5: ETIM 5.0 Class-ID: EC000104
ETIM 5.0 Class-Description: Control cable
Classification ETIM 6: ETIM 6.0 Class-ID: EC000104
ETIM 6.0 Class-Description: Control cable
Core identification code: Black with white numbers acc. to VDE 0293-334
Conductor stranding: Fine wire according to DIN EN 60228 (VDE 0295), class 5 / IEC 60228 class 5
Torsion movement in WTG: TW-0 & TW-1
Minimum bending radius: Occasional flexing: 10 x outer diameter
In power chains: 15 x outer diameter
Fixed installation: 4 x outer diameter
Nominal voltage: U0/U: 300/500 V
Test voltage: 4000 V
Protective conductor: G = with GN-YE protective conductor
X = without protective conductor
Temperature range: Occasional flexing: -15°C to +70°C
In power chains: -5°C to +70°C
Fixed installation: -40°C to +80°C
