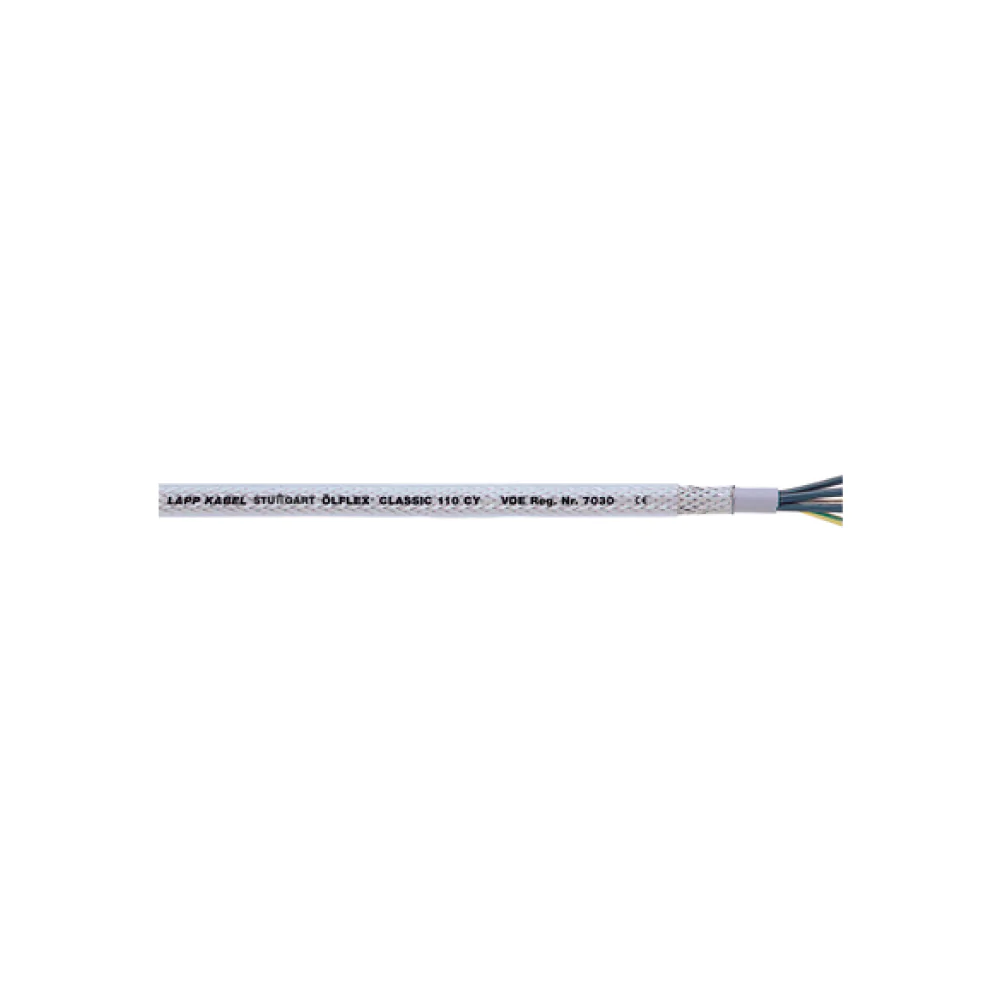

ÖLFLEX® CLASSIC 110 CY
ÖLFLEX® CLASSIC 110 CY – PVC control cable, VDE registered, screened, flexible and numbered for various applications, U0/U:300/500V
Benefits
Application range
Product features
Norm references / Approvals
Product Make-up
Technical Data
Benefits
Space-saving installation due to small cable diameters
High electrical performance due to 4 kV test voltage
Application range
Plant engineering
Industrial machinery
Heating and air-conditioning systems
Conveyor and transport systems
In EMC-sensitive environments (electromagnetic compatibility)
Product features
Flame-retardant according IEC 60332-1-2
Good chemical resistance, see catalogue appendix T1
High degree of screening, low transfer impedance (max. 250 Ω/km at 30 MHz)
Norm references / Approvals
VDE reg. no. 7030
Product Make-up
Fine-wire strand made of bare copper wires
PVC insulation LAPP P8/1
Cores twisted in layers
PVC inner sheath, grey
Tinned-copper braiding
PVC outer sheath, transparent
Technical Data
Classification ETIM 5: ETIM 5.0 Class-ID: EC000104
ETIM 5.0 Class-Description: Control cable
Classification ETIM 6: ETIM 6.0 Class-ID: EC000104
ETIM 6.0 Class-Description: Control cable
Core identification code: Black with white numbers acc. to VDE 0293-334
Conductor stranding: Fine wire according to VDE 0295, class 5/IEC 60228 class 5
Minimum bending radius: Occasional flexing: 20 x outer diameter
Fixed installation: 6 x outer diameter
Nominal voltage: U0/U: 300/500 V
Test voltage: 4000 V
Protective conductor: G = with GN-YE protective conductor
X = without protective conductor
Temperature range: Occasional flexing: -5°C to +70°C
Fixed installation: -40°C to +80°C
Note: Please follow manufacturer datasheets and guidelines for cable usage and installation.
