NYY-J Cables

Standard cable for direct burial with different application areas 0,6/1,0 kV alternative to the PVC installation cable NYM

Power and control cable for fixed installation in the following applications:
For indoor and outdoor use
Burial without additional, suitable underground protection according to VDE standard HD 603/VDE 0276-603 – Part 3-G (point 4) governing PVC cables for direct burial: normal minimum installation depth 0.6 m, but at least 0.8 m under roads
In concrete with a temperature below the maximum cable operating temperature of +70 °C according to the VDE standard HD 603/VDE 0276-603 – Part 3-G (point 4) governing PVC cables for direct burial

HD 603/VDE 0276-603 (for 1 to 5 cores)

HD 603/VDE 0276-603 (for 1 to 5 cores)

HD 627/VDE 0276-627 (as from 7 cores)

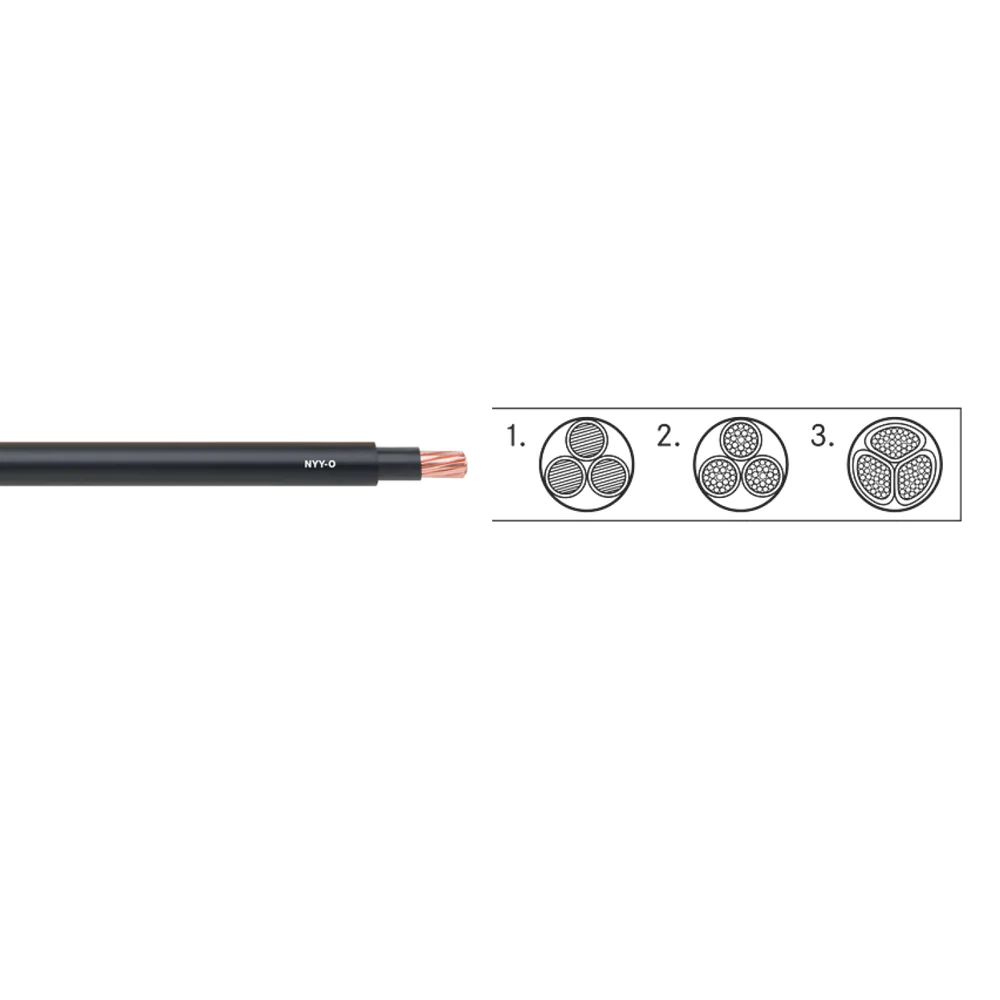

Bare copper wire conductor
Abbreviations “re”, “rm”, “se”, “sm”:
r = round conductor form;
s = sectorial conductor form;
e = single-wire conductor;
m = multi-wire conductor;
Core insulation: Based on PVC
Filling compound over the core assembly
Outer sheath: Based on PVC

Classification ETIM 5: ETIM 5.0 Class-ID: EC000057, ETIM 5.0 Class-Description: Low voltage power cable
Classification ETIM 6: ETIM 6.0 Class-ID: EC000057, ETIM 6.0 Class-Description: Low voltage power cable
Core identification code: Up to 5 cores: colour-coded according to VDE 0293-308
From 6 cores: black with white numbers
Conductor stranding: Single or multi-wire
Minimum bending radius: Single-core: 15 x outer diameter
Multi-core: 12 x outer diameter
Nominal voltage: U0/U: 0.6/1.0 kV
Test voltage: 4000 V
Protective conductor: J = with GN-YE protective conductor
O = without protective conductor
Temperature range: During installation: -5°C to +50°C
Fixed installation: -40°C to +70°C
