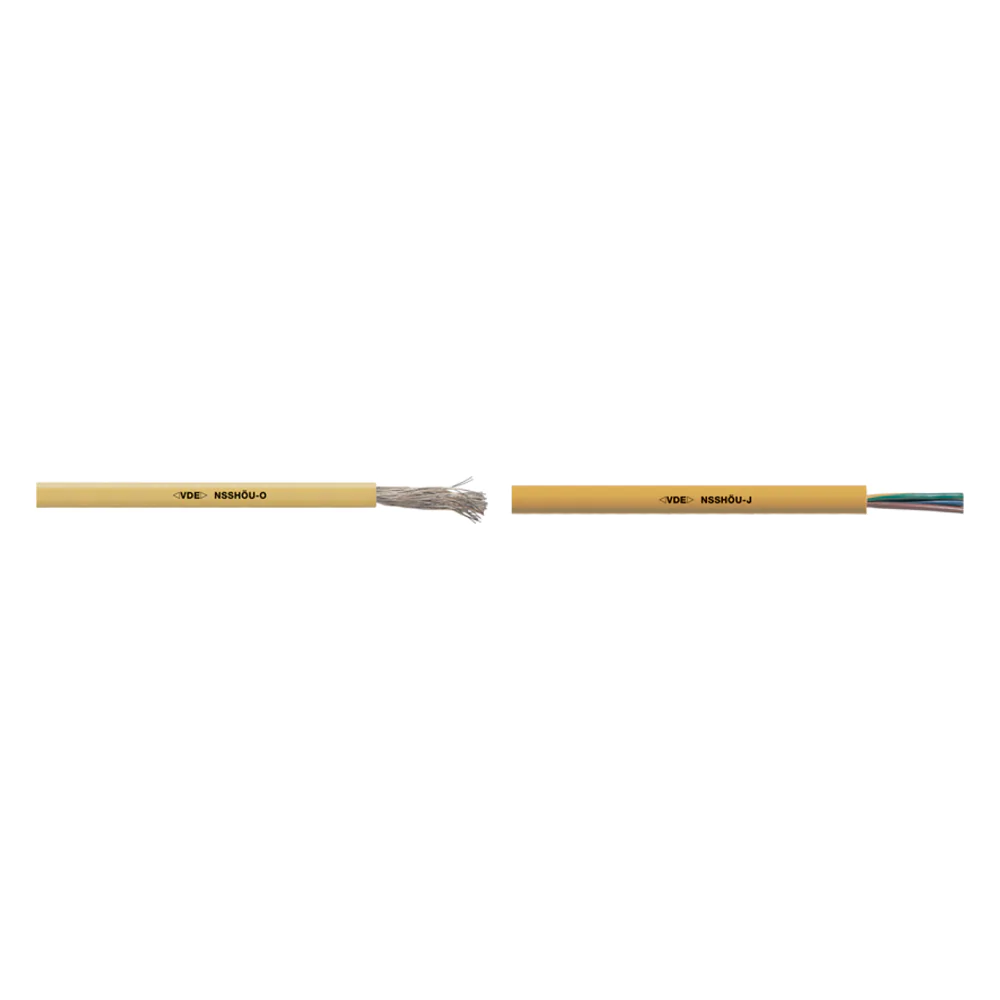

NSSHÖU

Mining
Outdoors
Oil-resistant

For use at very high mechanical stress
Single-core design suitable for robust connection cables for welding equipment
Not antistatic

For mining as well as surface mining
Connection for moving equipment and machinery
Under extreme environmental conditions
Suitable for outdoor use, as well as in dry and damp interiors

Flame retardant acc. to IEC 60332-1-2
Oil-resistant according to EN 60811-404
High notch resistance
Abrasion-resistant

Fine-wire strand made of tinned-copper wires
Core insulation: rubber compound, type 3GI3
Inner sheath: rubber-compound, type GM1b or 5GM5
Outer sheath: rubber compound, type 5GM5

Classification ETIM 5: ETIM 5.0 Class-ID: EC000057, ETIM 5.0 Class-Description: Low voltage power cable
Classification ETIM 6: ETIM 6.0 Class-ID: EC000057, ETIM 6.0 Class-Description: Low voltage power cable
Core identification code: Up to 5 cores: colour-coded according to VDE 0293-308, From 6 cores: black with white numbers
Conductor stranding: Fine wire according to VDE 0295 Class 5/ IEC 60228 Class 5
Minimum bending radius: Flexible use: 10 x outer diameter
Fixed installation: 5 x outer diameter
Nominal voltage: U0/U: 600/1000 V
Test voltage: 3000 V
Protective conductor: G = with GN-YE protective conductor, X = without protective conductor
Current rating: According to VDE 0298 Part 4, Table 15
Temperature range: Occasionally moved: -25°C up to +90°C
Fixed installation: -40°C to +90°C
