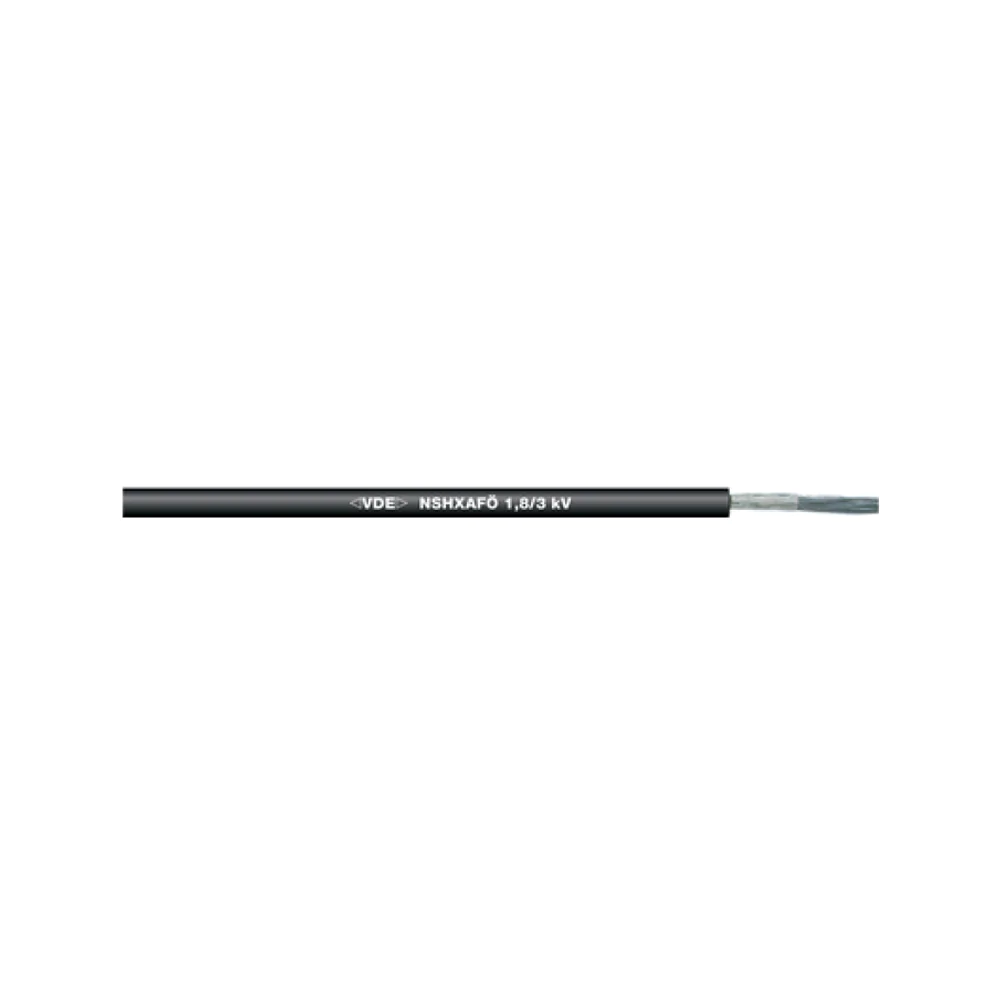

NSHXAFÖ 1,8/3 kV

Public transport
Control panel internal wiring
Halogen-free

Arrangements made of single-conductor cables NSHXAFö in accordance with VDE 0250 Part 606 with nominal voltage of at least U0/U: 1.8/3 kV can be used for short circuit-proof and short-to-ground-proof installation up to 1000 V in acc. with VDE 0100 Part 520 and VDE 0298 Part 3

Wiring of machines, tools, devices, appliances and control cabinets
Railway vehicles, buses;
short-circuit-proof up to 1000 V in switching stations and power distributors
In ducts, tubes, pipes, conduits and closed installation channels
Bundled or for connection of movable parts

Halogen-free: to protect human life and valuable assets in the event of a fire, through low smoke density and low amount of
corrosive gases
Flame-retardant according IEC 60332-1-2
Normative rated voltage class 3.6/6 kVac available on request
The outer diameters stated in the part number table are maximum values

NSHXAFÖ 1,8/3 kV cable type approval according to VDE 0250-606

Fine copper wire strands
Core insulation: halogen-free rubber compound, type 3GI3
Outer coating: halogen-free polymer compound, type HM3

Classification ETIM 5: ETIM 5.0 Class-ID: EC000993, ETIM 5.0 Class-Description: Single core cable
Classification ETIM 6: ETIM 6.0 Class-ID: EC000993, ETIM 6.0 Class-Description: Single core cable
Conductor stranding: Fine wire according to VDE 0295 Class 5/ IEC 60228 Class 5
Minimum bending radius: Flexible use: 10 x outer diameter
Fixed installation: 6 x outer diameter
Nominal voltage: U0/U: 1.8/3 kV
Test voltage: 6000 V
Temperature range: During laying: -25 up to +70°C
Fixed installation: -40°C up to +90°C
