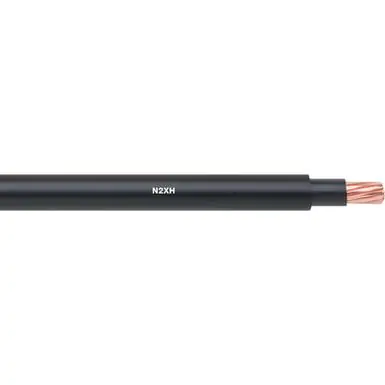

N2XH Cables – IEC 60332-3-24 – LSZH

For installation on or under the plaster
Fixed installation indoor, in air or concrete
For buildings or industrial plants with a high density of people or valuable assets
No direct burial or installation in water
Outdoor laying only when protected from direct sunlight and other external impacts

Flame-retardant according IEC 60332-1-2
No flame-propagation according to IEC 60332-3-24
Halogen-free according to IEC 60754-1 (amount of halogen acid gas)
Corrosiveness of combustion gases according to IEC 60754-2 (degree of acidity)
Low smoke density according to IEC 61034-2

HD 604/VDE 0276-604

Bare copper wire conductor
Abbreviations “re”, “rm”, “se”, “sm”:
r = round conductor form;
s = sectorial conductor form;
e = single-wire conductor;
m = multi-wire conductor;
Core insulation: Cross-linked Polyethylen (XLPE)
Filling compound over the core assembly
Outer sheath: halogen-free, thermoplastic polyolefin compound

Classification ETIM 5: ETIM 5.0 Class-ID: EC000057, ETIM 5.0 Class-Description: Low voltage power cable
Classification ETIM 6: ETIM 6.0 Class-ID: EC000057, ETIM 6.0 Class-Description: Low voltage power cable
Core identification code: Up to 5 cores: colour-coded according to VDE 0293-308
From 6 cores: black with white numbers
Conductor stranding: Single or multi-wire
Minimum bending radius: Single-core: 15 x outer diameter
Multi-core: 12 x outer diameter
Nominal voltage: U0/U: 0.6/1.0 kV
Test voltage: 4000 V
Protective conductor: J = with GN-YE protective conductor
O = without protective conductor
Temperature range: During installation: -5°C bis +90°C
Fixed installation: -40°C bis +90°C
