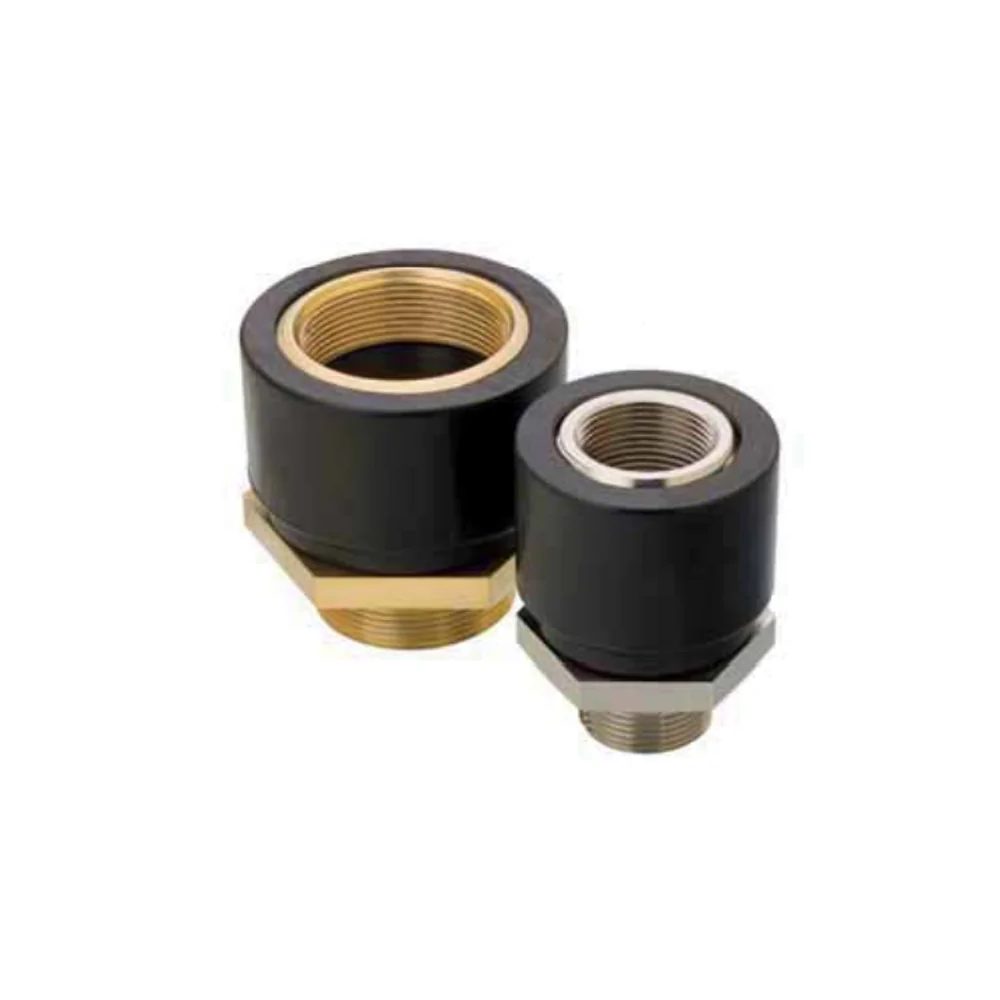

Insulated Adaptor

• International Ex approvals
• IP54, CSA Enclosure Type (NEMA) 3

• Provides method of insulating connection device from the equipment
• Allows armour current to be controlled in a positive manner
• Inspection of grounding made easy

• Brass CZ121
• 316 stainless steel
• Aluminium

• Metric
• NPT
• NPSM
• PG
• ISO pipe (BSP)
• ET

To avoid relying on the contact between cable termination and equipment enclosure for grounding the cable armour, an insulated adaptor can be fitted to both ends of the cable with a grounding device (i.e. earth tag/lug) fitted between the adaptor and the termination. The armour current can then be taken from the grounding device to ground in a controlled, positive manner that can be inspected easily.

Code of protection categories
ATEX: Ex d IIC
GOST: Ex d IICU
Compliance standards
ATEX: EN 50014, EN 50018, EN 50019, EN 5081-1-1
Certificate details
ATEX: Sira 00ATEX1073U
GOST: TC RUC-G B.ГБ06.B.00105
Temperature
Temperature range -20°C to +130°C
