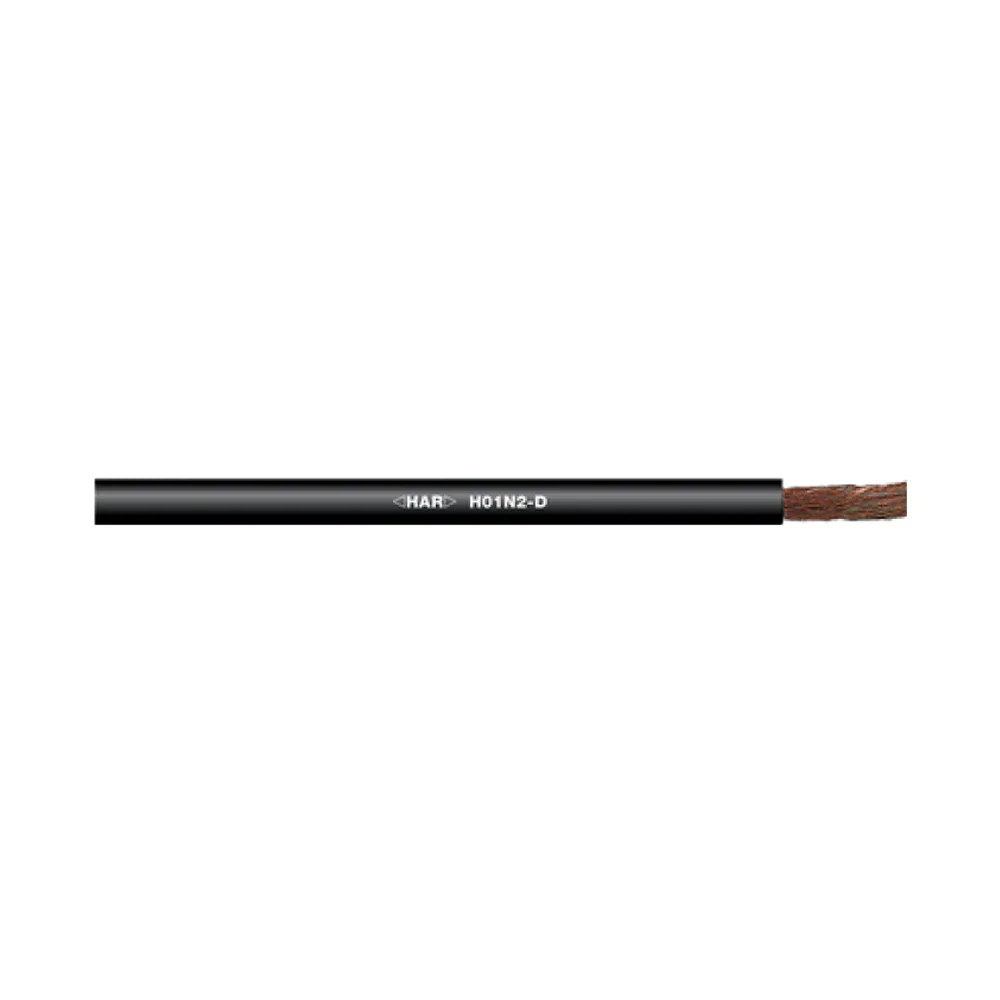

HO1N2-D Welding Cable

Type-compliant versions -certified with “” testing and certification mark for accelerated granting of approvals if final application of cable is within the European CENELEC area

Use the welding cable only under consideration of EN 50565-2
For use on handheld electrode holder up to 100 V Can be used in dry or damp rooms.
For transmitting high currents from the electric welding device to the welding tool.

Flame-retardant according IEC 60332-1-2

H01N2-D cable type approval according to EN 50525-2-81

Bare copper wire according to HAR.
Stranding approximately corresponds to class 6 up to 95 mm², and from 120 mm² approximately to class 5 acc. to VDE 0295.
Separator made of synthetic film or paper.
Outer sheath: rubber compound, type EM5.

Classification ETIM 5: ETIM 5.0 Class-ID: EC000824, ETIM 5.0 Class-Description: Welding cable
Classification ETIM 6: ETIM 6.0 Class-ID: EC000824
ETIM 6.0 Class-Description: Welding cable
Conductor stranding: H01N2-D according to EN 50525-2-81
Minimum bending radius: Flexible use: 12 x outer diameter
Nominal voltage: U0/U: 100/100 V
Test voltage: 1000 V
Current rating: According to VDE 0298 Part 4, table 16
EN 50565-1/ VDE 0298-565-1
Temperature range: Flexible use: -25°C to +85°C
