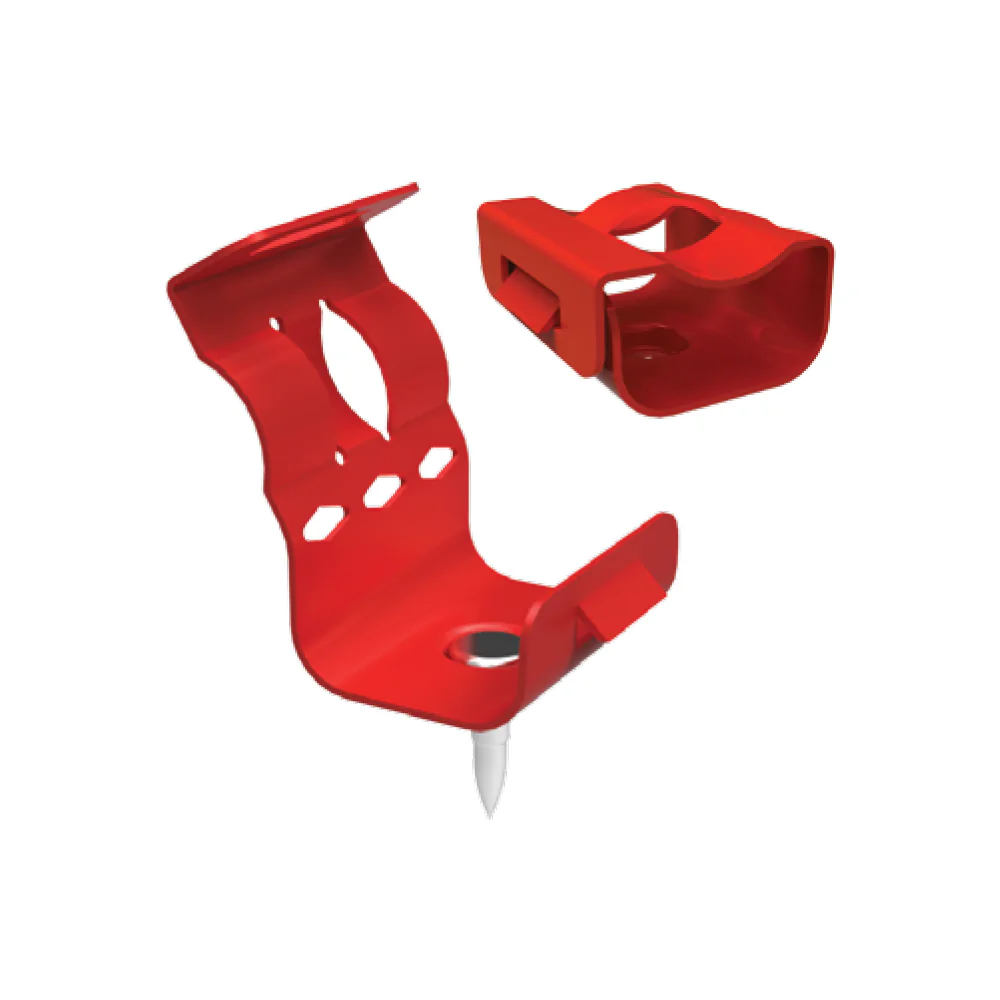

The Firefix™ system is fast easy and meets the cable support requirements of British standards: BS5839-1: 2002, BS5266-1:2011 and BS5839-8: 2006.
Designed to be used with the Spit Pulsa™ gas nailing technology for rapid installation.
Made from corrosion resistant Stainless Steel which is coated with an intumescent LSOH coating in either white or red to match the cable.
Should be installed in accordance with BS7671 / IEE wiring regulations, or other appropriate code.
Can be fixed to steel, block work, composite steel decking, brick or concrete.
The fixing of the clip and installation of the cable takes just 10 seconds.
1. Attach adaptor to Pulsa™ tool.
2. Position the FIREFIX™ clip on to the adaptor.
3. Ensure the substrate is clear before pushing the Spit Pulsa™ tool against the substrate, and nailing the clip into position.
4. Place the cable into the clip.
5. Close clip.
Note: Please follow manufacturer datasheets and guidelines for cable usage and installation.
