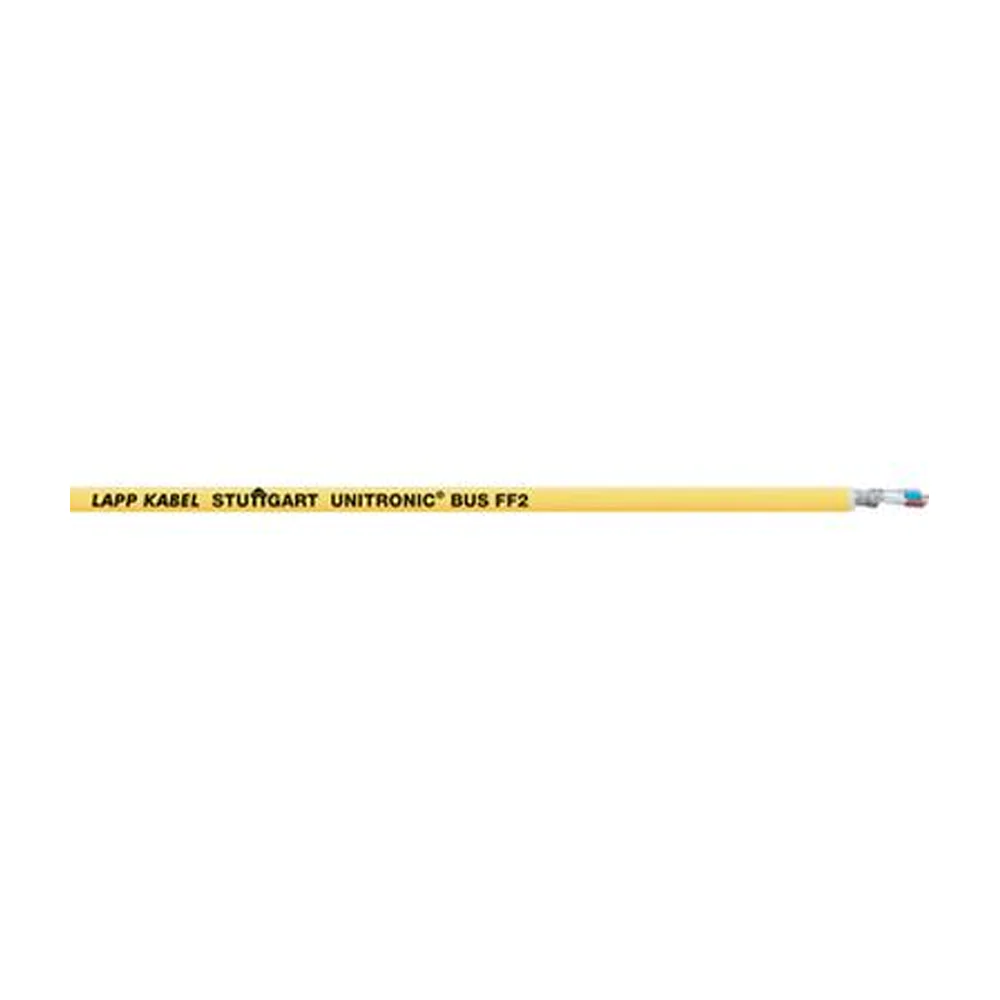

Fieldbus Cable
FOUNDATION Fieldbus cable for use in Process Automation – UL-verified
Used in intrinsically safe areas, especially in the field of Process Automatio. UL/CSA-approval. Temperature range from -40 °C bis +105°C
Benefits
Application range
Product features
Norm references / Approvals
Product Make-up
Technical Data
Benefits
Cables meet the requirements of ISA/SP50 and the FOUNDATION™ field bus for the cable type A.
Application range
FOUNDATION™ Fieldbus is used in intrinsically safe areas, especially in the field of Process Automation
Fixed Installation
Product features
UV-resistant
Extended temperature range
Norm references / Approvals
With UL/CSA certification (CMG/PLTC)
Product Make-up
2-core, not armoured, with device ground
3-core, unarmoured, with device ground
3-core, armoured (longitudinally welded, spiral corrugated copper sheath) with device ground
Outer sheath: PVC, yellow
Armoured Version: PVC, yellow and blue
Technical Data
Classification ETIM 5: ETIM 5.0 Class-ID: EC000830, ETIM 5.0 Class-Description: Data cable
Classification ETIM 6: ETIM 6.0 Class-ID: EC000830, ETIM 6.0 Class-Description: Data cable
Peak operating voltage: 300 V
Conductor resistance: ≤ 24 Ohm/km
Minimum bending radius: 15 x outer diameter
Test voltage: 1500 V
Characteristic impedance: 100 ± 20 Ohm at 31.25 kHz
Temperature range: -40 °C or -25 °C to +105 °C, see data sheet
Note: Please follow manufacturer datasheets and guidelines for cable usage and installation.
