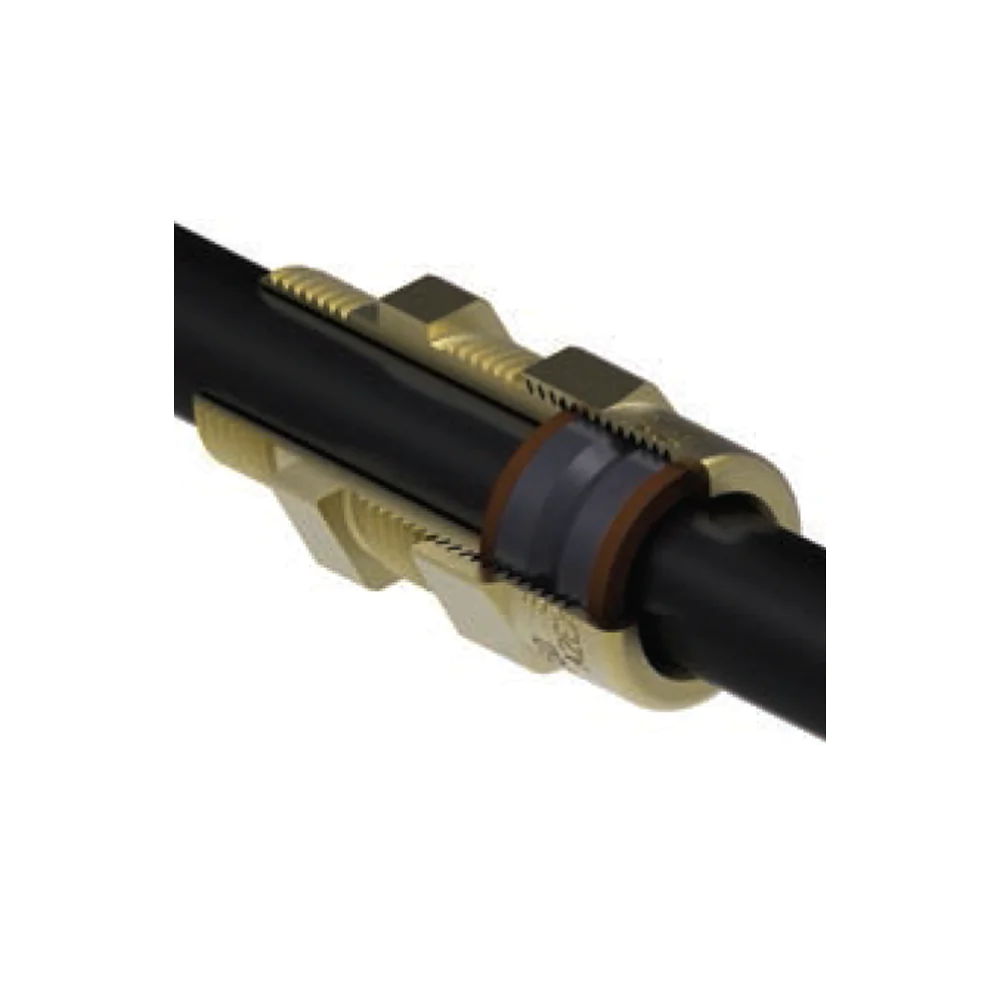

A2EX
Suitable For Use with Circular Un-Armoured & Braided Cables
Service temperature range –50°C to +200°C
Features and benefits
Technical Information
Features and benefits
Brass indoor and outdoor cable gland for use in hazardous areas
Suitable for circular unarmoured cables with extruded oversheath
Fitted with silicone rubber low smoke, zero halogen seal
Achieves IP66, IP68 (1 bar) and deluge proof (DTS01:1991) seal onto cable and to enclosure with suitable sealing washer or thread sealant
Suitable for most climatic conditions – weatherproof, waterproof and deluge proof
Standard and Nickel plated versions available
Full Installation Instructions supplied
Technical Information
Certified ΙΙ 2GD, Ex e ΙΙ & Ex d ΙΙC under ATEX directive 94/9/EC
Atex Compliance Standards: EN 60079-0, EN 60079-1, EN 60079-7, EN 61241-0, EN 61241-1
Certificate number Sira99ATEX1086X
IECEx Compliance Standards: IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 61241-0, IEC 61241-1
Certificate number IECEx SIR 10.0069X
Note: Please follow manufacturer datasheets and guidelines for cable usage and installation.
